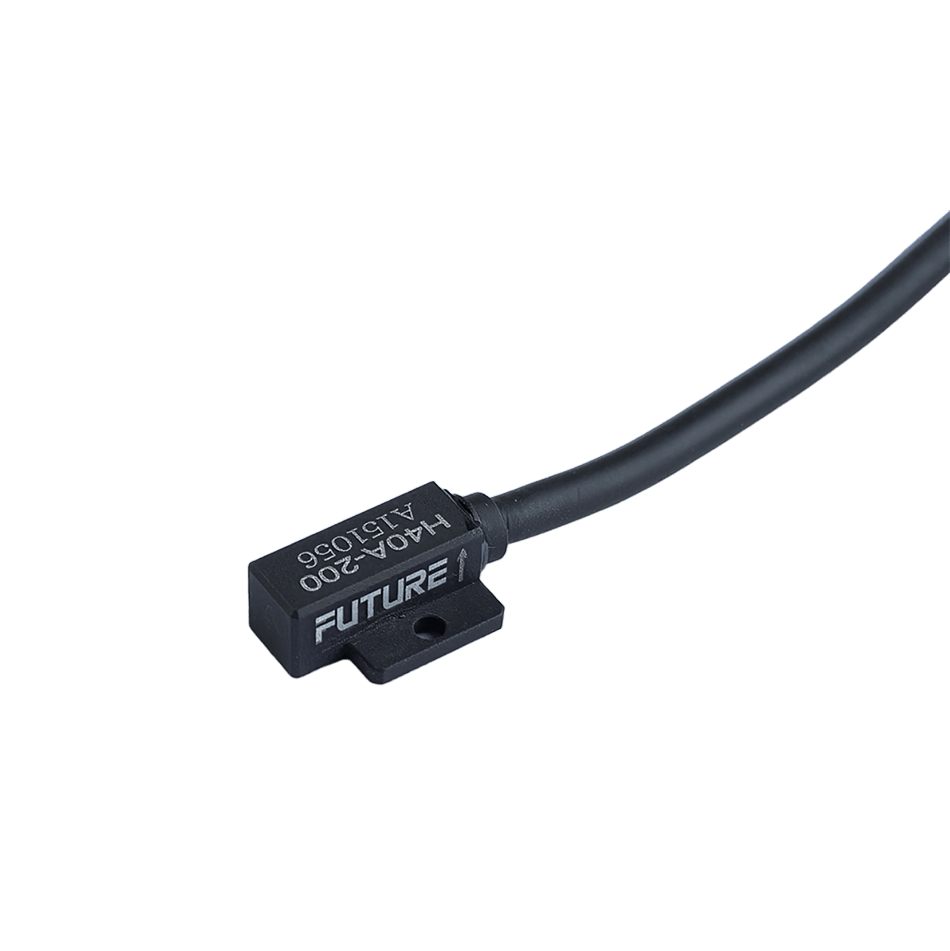

FUTURESES H40Accelerometer
Product Information
- Sensor technology: Piezoresistive
- Number of sensitive directions: Uniaxial
- Output signal: Voltage
- Measurement range [g]: 200, 500, 2000
Technology:
These piezoresistive accelerometers are based on proven MEMS technology, in which four variable resistors are configured as a Wheatstone bridge.
The uniaxial FUTURESES H40 features a wide dynamic range from 0 Hz to 1000 Hz and outstanding impact resistance up to 10,000 g. In addition, the lightweight design allows its use in applications where the mass load of the test structures has to be minimized.
Housing:
There are various configuration options for the accelerometers. These include the length of the integrated cable, connectors as well as the integration of Dallas DS2401 chips.
Applications:
The Model H40 is a miniaturized uniaxial accelerometer designed for pedestrian crash tests to optimize vehicle front ends and windshields, thereby minimizing impact injuries to the head, torso or legs.
- Temperature: -40°C to +85°C
