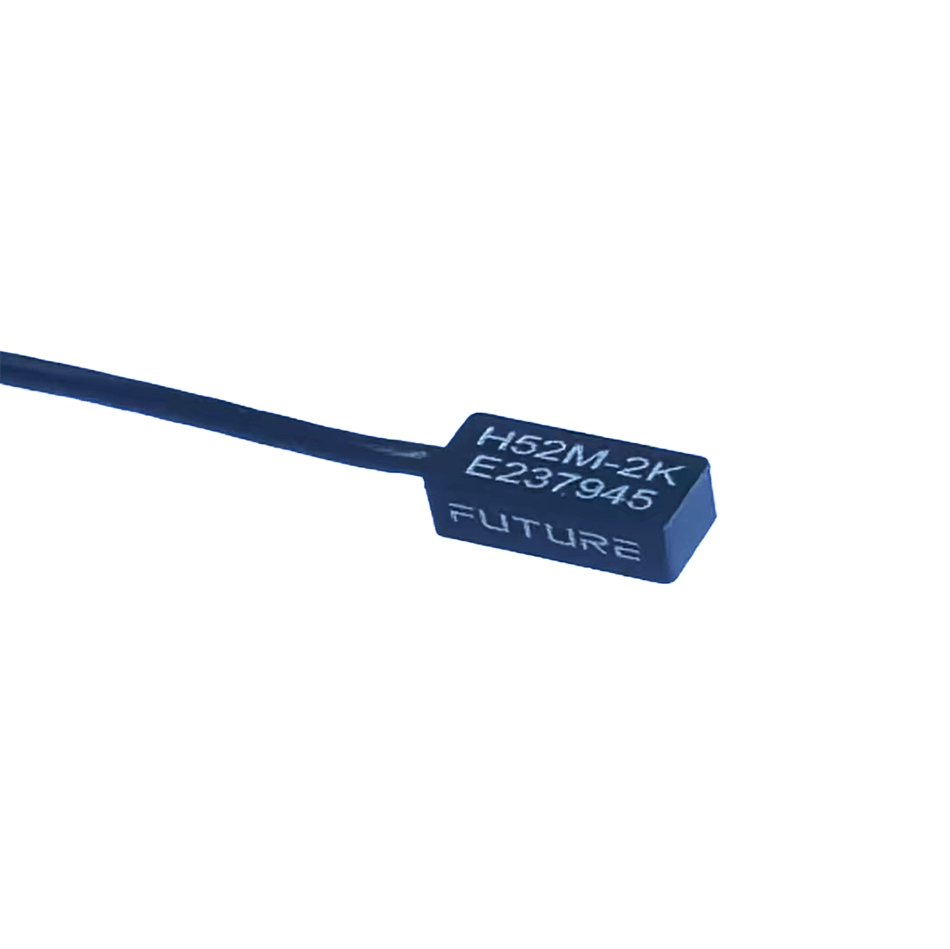

FUTURESES H52MAccelerometer
Product Information
- Sensor technology: Piezoresistive
- Number of sensitive directions: Uniaxial
- Output signal: Voltage
- Measurement range [g]: 100, 500, 1000, 2000
Technology:
These piezoresistive accelerometers are based proven MEMS technology, in which four variable resistors are configured as a Wheatstone bridge.
The uniaxial FUTURESES H52M features a wide dynamic range from 0 Hz to 5 kHz and outstanding impact resistance up to 6,000 g. In addition, the lightweight design allows its use in applications where the mass load of the test structures has to be minimized.
Housing:
There are various configuration options for the accelerometers. These include the length of the integrated cable, connectors as well as the integration of Dallas DS2401 chips. Epoxy potting design support the feature of protection class Ip67 (waterproof).
Applications:
The H52M model is a miniaturized uniaxial accelerometer designed for high-impact and shock applications, such as side and frontal impact tests in the automotive sector.
- Temperature: -40°C to +120°C
- Protection class: IP67
