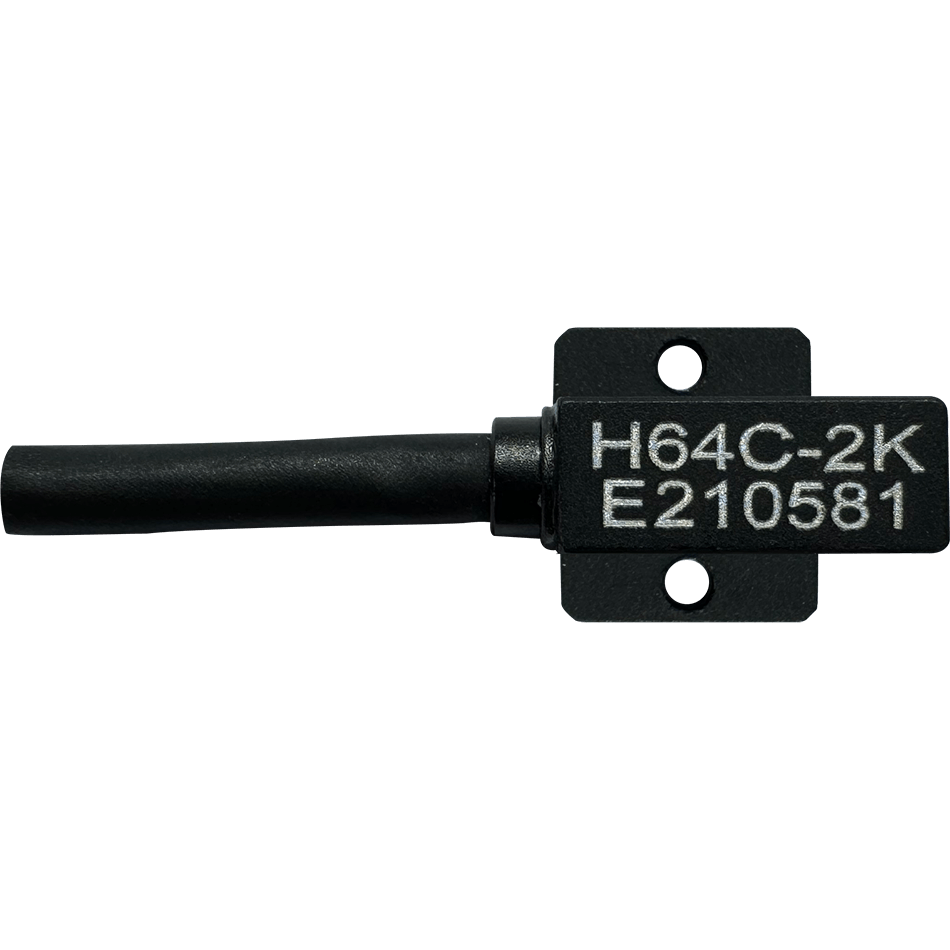

FUTURESES H64CAccelerometer
Product Information
- Sensor technology: Piezoresistive
- Number of sensitive directions: Uniaxial
- Output signal: Voltage
- Measurement range [g]: 50, 100, 200, 500, 2000, 6000
Technology:
These piezoresistive accelerometers are based proven MEMS technology, in which four variable resistors are configured as a Wheatstone bridge.
The uniaxial FUTURESES H64C features a wide dynamic range from 0 Hz to 7 kHz and outstanding impact resistance up to 10,000 g. In addition, the lightweight design allows its use in applications where the mass load of the test structures has to be minimized.
Housing:
There are various configuration options for the accelerometers. These include the length of the integrated cable, connectors as well as the integration of Dallas DS2401 chips.
Applications:
The Model H64C is a miniaturized uniaxial accelerometer designed for crash tests where minimal weight and a wide frequency range are critical. The sensor meets SAE J211 specifications for use in crash test dummies (Anthropomorphic Test Devices, ATDs).
- Temperature: -40°C to +120°C
